Betong Recycling System / Fresh Concrete Recycler

Ref: RF28218

Betong ny nc Recycling System / Fresh Concrete Recycler

2025
06980 Ankara

Huvudsaklig information
Kundref.:	RF28218
Webbplatsref.:	10680132
Typ	--
Märke	--
Modell	Recycling System / Fresh Concrete Recycler
Tillstånd	Ny
År	2025
Land	TURKIET

Anmärkningar
Localisation : • Turquie ANKARA2491 km to "Belgium/Brussels" Informations supplémentaires : • bleu Concrete Reclaimer System Main unit: - Hot dip galvanized U channel in extra heavy duty form and 4 pcs eyebolts for handling - 1 pc butterfly valve with manual actuator drive is supplied with the unit to facilitate easy discharge for cleaning - Two outlets for overflowed gray water at both sides to let max suit to plant location; and 3 meter long hose with flange. - 20mm thickness carbon steel flights and shaft system suitable for heavy duty operation - Distributor system for additional washing of seperated agregates. - Supplied with 1,5m³ capacity of hopper with hatch - Extra heavy duty direct coupled gearbox and 4kW electric motor with protection cover. - Washing hose system with fittings - 2 pcs galvanized support with fixing holes - Flange to flange length 4.500mm - Capacity 5m³/h (nominal) Feeding station: - Rectangular hopper and cage, - Manual feeder outlet adjustment system for flow rate control - Support - Vibrating feeder unit with 1 pc vibrator Control Board: Control Board, 380 V /50 Hz - Manual operation and - Automatic operation in 3 operation mode * Mode 1: seperation/washing mode * Mode 2: stand by mode * Mode 3: off/park mode - The intervals and operation periods can be adjusted according to the plant needs and washing efficiency needed. - Cabling with emergency stops. - Alarm included - Rotative light type position indicator Price on request
Se allt

Anmärkningar

Localisation :
• Turquie ANKARA2491 km to "Belgium/Brussels"
Informations supplémentaires :
• bleu

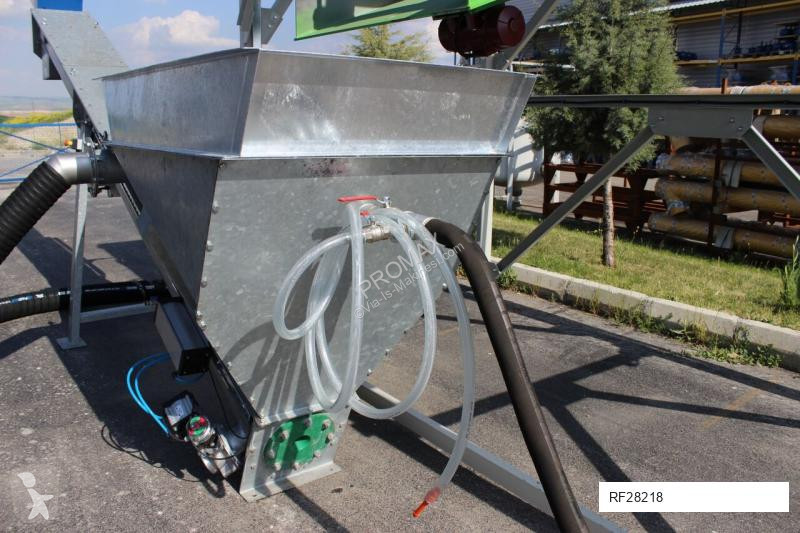

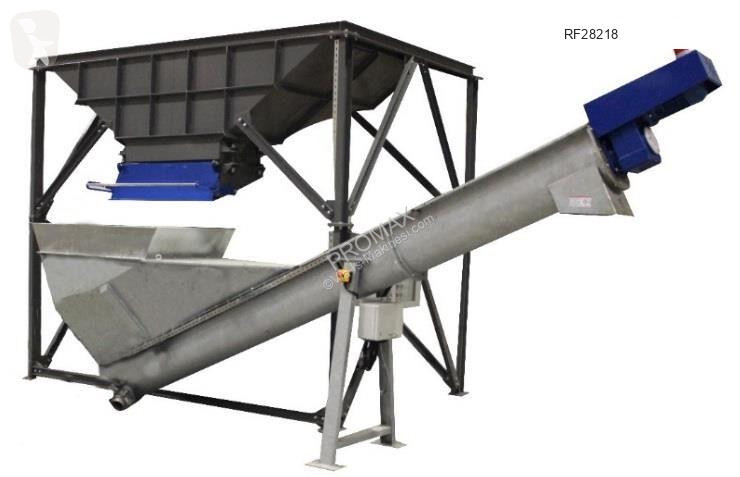

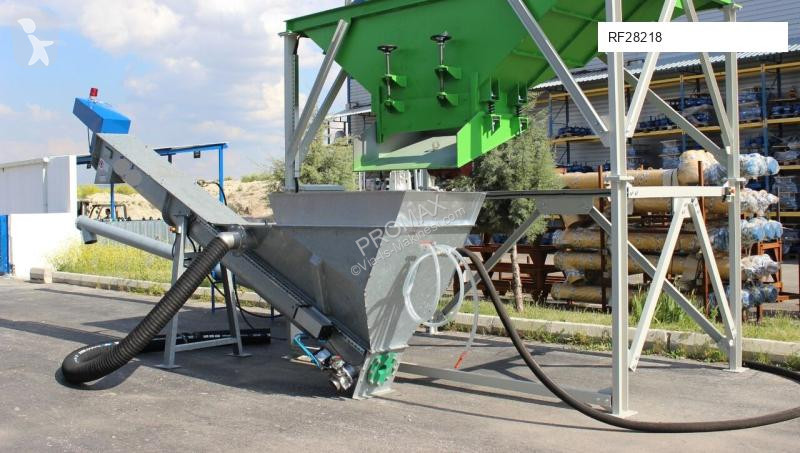

Concrete Reclaimer System

Main unit:
- Hot dip galvanized U channel in extra heavy duty form and 4 pcs eyebolts for handling
- 1 pc butterfly valve with manual actuator drive is supplied with the unit to facilitate easy discharge for cleaning
- Two outlets for overflowed gray water at both sides to let max suit to plant location; and 3 meter long hose with flange.
- 20mm thickness carbon steel flights and shaft system suitable for heavy duty operation
- Distributor system for additional washing of seperated agregates.
- Supplied with 1,5m³ capacity of hopper with hatch
- Extra heavy duty direct coupled gearbox and 4kW electric motor with protection cover.
- Washing hose system with fittings
- 2 pcs galvanized support with fixing holes
- Flange to flange length 4.500mm
- Capacity 5m³/h (nominal)

Feeding station:
- Rectangular hopper and cage,
- Manual feeder outlet adjustment system for flow rate control
- Support
- Vibrating feeder unit with 1 pc vibrator

Control Board:
Control Board, 380 V /50 Hz
- Manual operation and
- Automatic operation in 3 operation mode
* Mode 1: seperation/washing mode
* Mode 2: stand by mode
* Mode 3: off/park mode
- The intervals and operation periods can be adjusted according to the plant needs and washing efficiency needed.
- Cabling with emergency stops.
- Alarm included
- Rotative light type position indicator

Price on request
