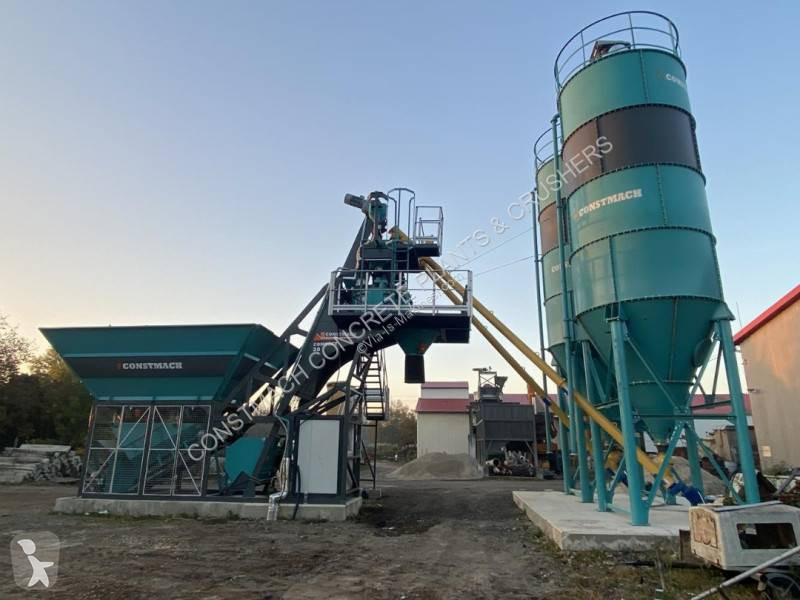

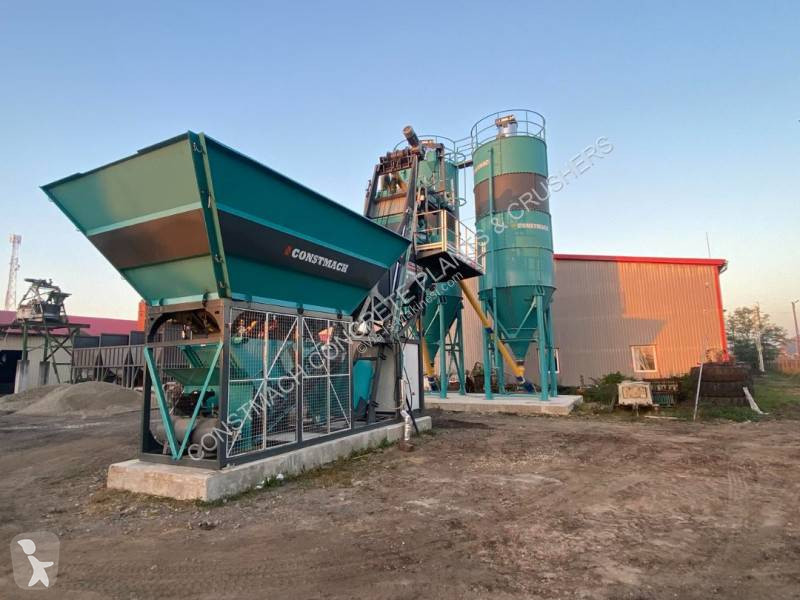

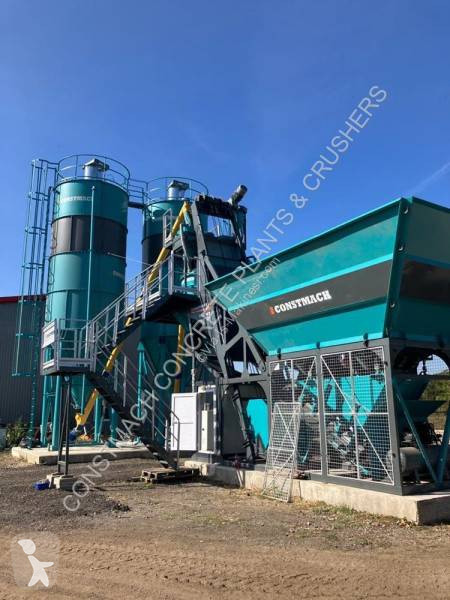

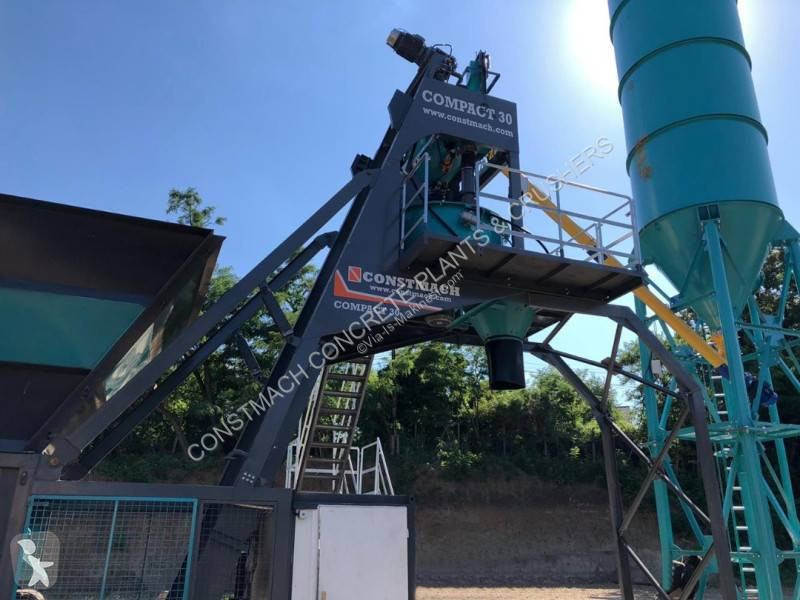

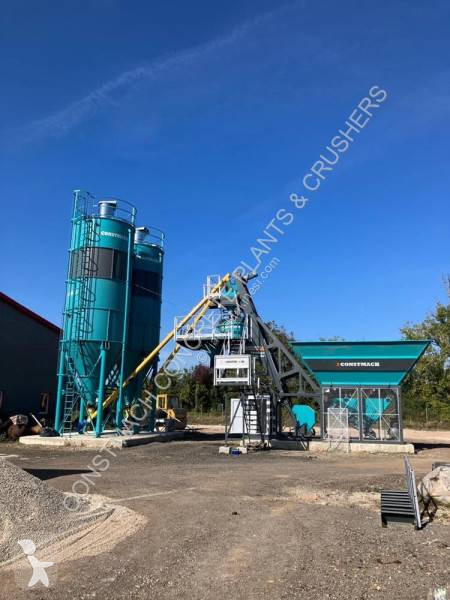

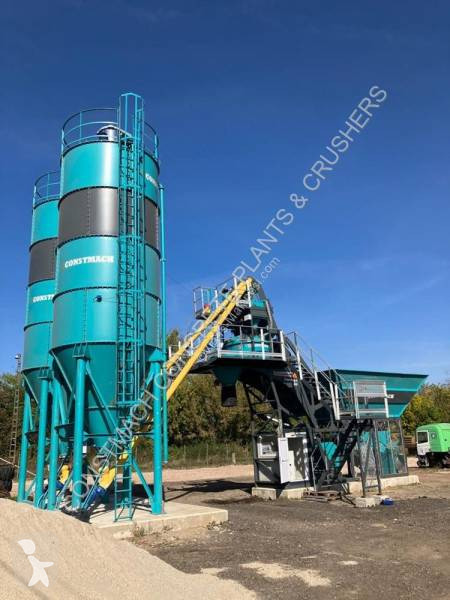

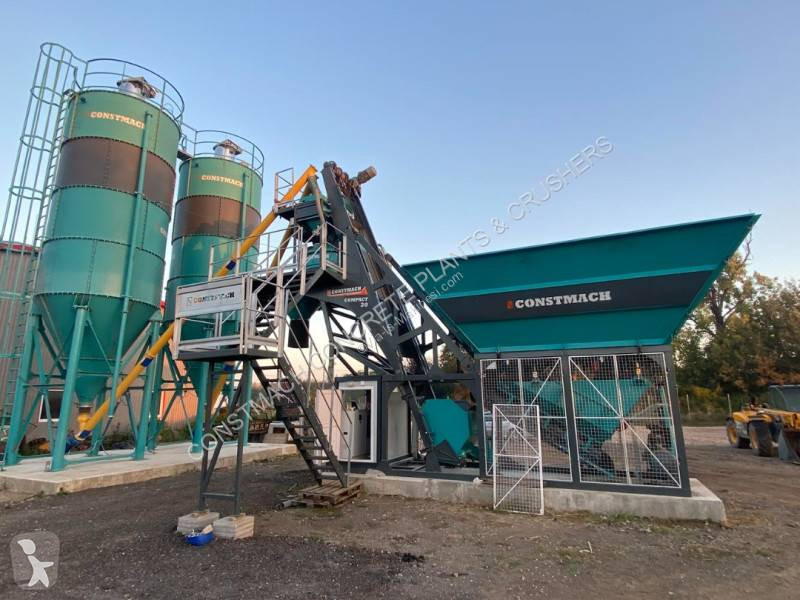

Betonganläggning ny Constmach 30 m³/h Compact Concrete Batching Plant

You can call us 24/7 for a compact concrete batching plant for sale.

Designed to strengthen your business and simplify your application process, CONSTMACH KOMPAKT 30 attracts attention with its advanced features. The COMPACT 30 weighs only 13 tons and offers exceptional portability with a transport position measuring 12 x 2.2 x 2.2 meters. This requires only the optimal operational space and makes installation fast and hassle-free. It can be easily installed and operated even in limited spaces, allowing your projects to get started faster and more efficiently.

The fully automatic control system offers excellent precision and consistency at every stage, while providing flexibility to suit your needs with various mixer options (Pan, Single Shaft, Planetary). the production capacity of 30 m3/h is strong enough to meet the requirements of large projects and, despite its compact size, it performs effectively even in large jobs.

In addition, this system, which requires minimal infrastructure investment, is one of the main reasons why it is preferred economically. The COMPACT 30, which can work effectively on an area as small as 200 m2, allows you to save time and cost on your projects. It is optimized for energy needs with the required 80 kVA electric generator and 50 kW total motor power.

This unit offers a strategic investment opportunity for you with its low initial cost, reduced operating expenses and sustainability features. The fully automatic system, which provides superior control in the dosing of cement, water and additives, creates perfect mixtures at every use. Thus, it guarantees the best results for each project. The COMPACT 30 promises reliability and longevity even in harsh conditions, so that your projects are always completed on time and within budget.

Compact Concrete Batching Plant with Bucket 30 Compact Technical Characteristics

General Features

Production capacity 30 m3/h​
Transport Position Size 12(L) x 2.2(W) x 2.2(H) meters
Weight 13 tons
Total Motor Power 50 kW
Required Electricity Generator 80 kVA
Mixer Options Pan - Single Shaft - Planet
The required area for operation is 200 m2

Technical Specifications

Aggregate Stock Hopper 4 x 6 m3
Aggregate Weighing Hopper 0.75 m3
Aggregate Weighing Conveyor 600 x 4.000 mm
Aggregate Transfer Bucket Volume 0.75 m3
Mixer Wet Concrete Volume 0.5 m3
Cement Weighing Hopper 300 kg
Water Weighing Hopper 200 lt
Additive Weighing Hopper 20 lt
Air Compressor 300 lt, 4kW

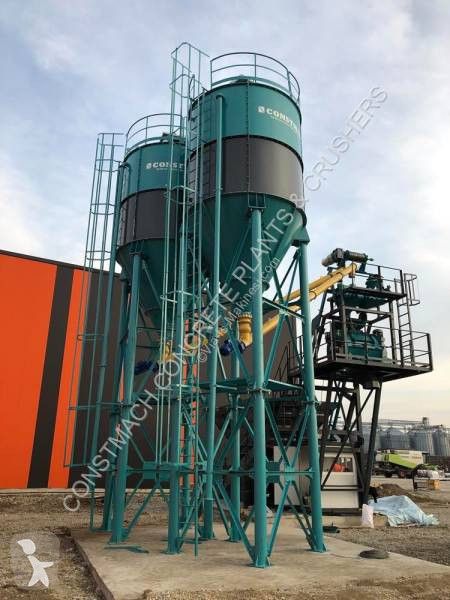

Cement Silo capacity option from 50 tons to 500 tons
Control type FULLY AUTOMATIC
