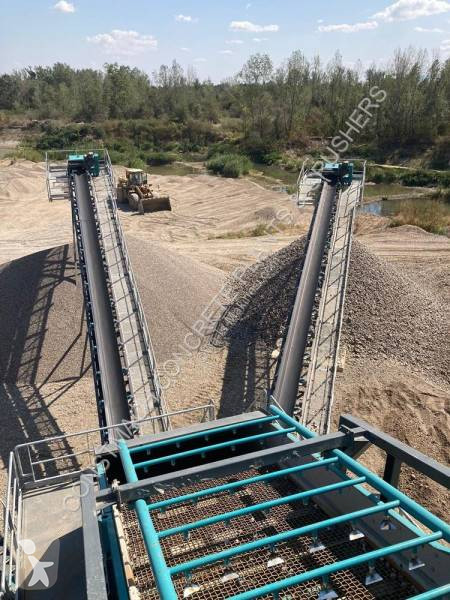

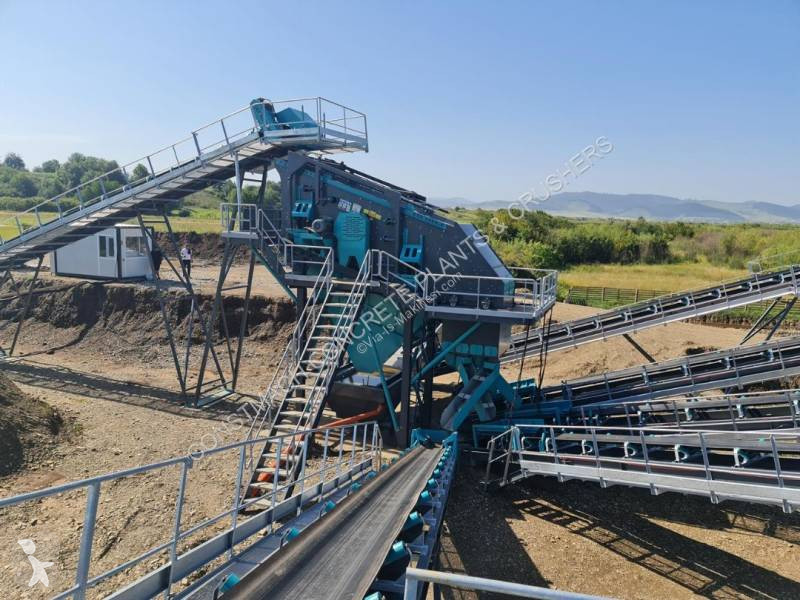

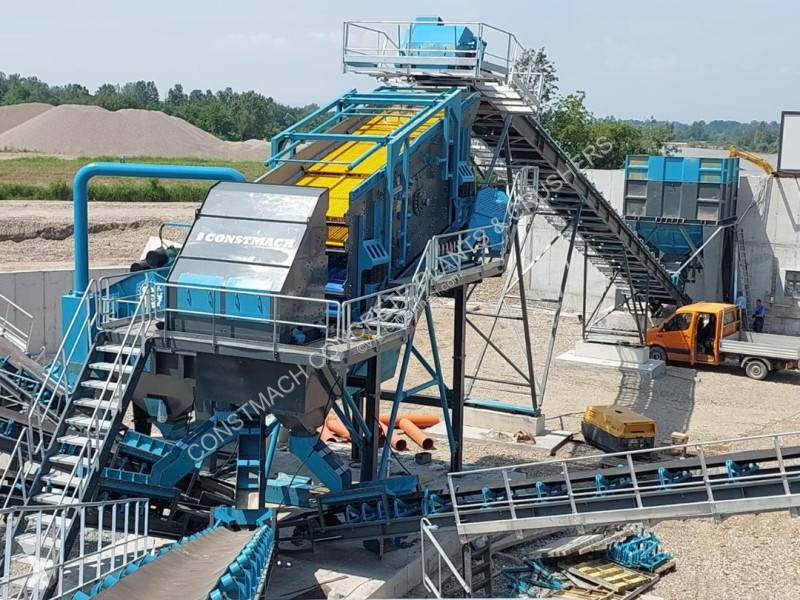

Hjul för sandtvätt ny Constmach Stationary Sand, Gravel Washing And Screening Plant

CONSTMACH Washing and Screening plants offer the perfect solution for the natural screening and washing of sand and gravel. These facilities, which have high production capacity, can be designed according to different layout plans according to the amount of final material and type of washer requested by the users. These facilities provide high efficiency in sand, screening, washing and gravel and gravel washing and screening processes.

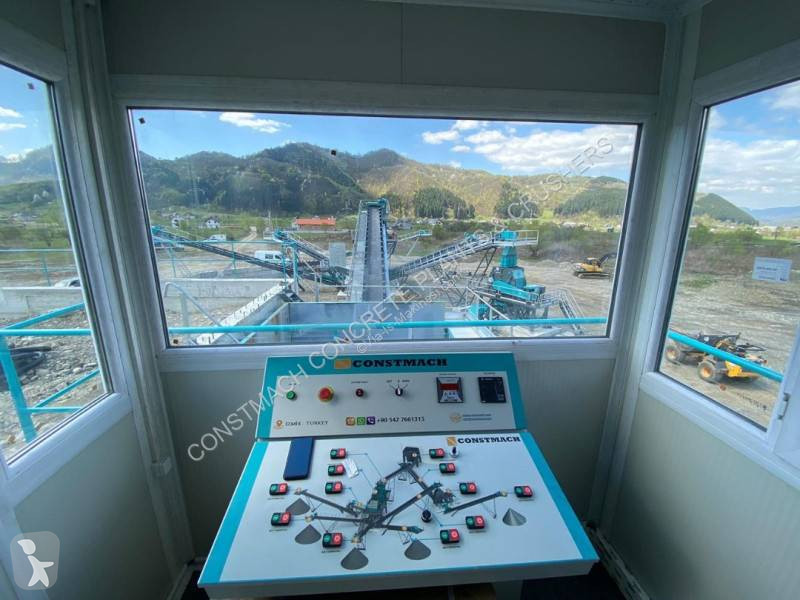

CONSTMACH Washing and Screening plants are a perfect combination of components such as vibrating feed hopper, vibrating screen with washing nozzle, feeding belt between the feed hopper and vibrating screen, washing systems such as screw washer, bucket washer or hydrocyclone, stock belts, control cabinet and automation system with PLC. combination. This system allows the use of different types of washing systems according to customers' needs.

The technical specifications of the facilities vary depending on the production capacity, the amount and size of the final fractions after sieving, and the washer system to be used. These facilities, whose production capacity varies between 100 - 250 t/h, have a maximum feeding size of 200 mm and a feeding height of 4.5 meters. The main configuration includes feed hopper, vibrating screen, washing machine, screw washing machine or wheel washing machine/hydrocyclone and conveyors.

CONSTMACH's sand screening washing machine, total engine power and electrical generator requirements vary according to production capacity. These superior facilities offer customers a reliable and long-lasting solution with their durable structure and high performance. Choose CONSTMACH Washing and Screening facilities for the effective processing of sand and gravel and experience quality and efficiency together.

Fixed Washing and Screening Plant Technical Specifications

The technical specifications and main configuration of our washing facilities vary depending on the following situations:
Production capacity​
Amount and size of final fractions after sieving
Washer system to be used
Production Capacity 100 - 250 t/h
Maximum Feed Size 200 mm
Feeding Height 4.5 meters
Main Configuration Feed Hopper + Vibrating Screen, Washing Machine + Screw Washing Machine / Wheel Washing Machine / Hydrocyclone + Conveyors
Total Engine Power varies depending on production capacity
Electricity Generator Requirement varies depending on production capacity
Weight varies depending on production capacity
