Hydraulsystem begagnad nc Occ centrifugaal pomp 02F1-GR

02F1-GR

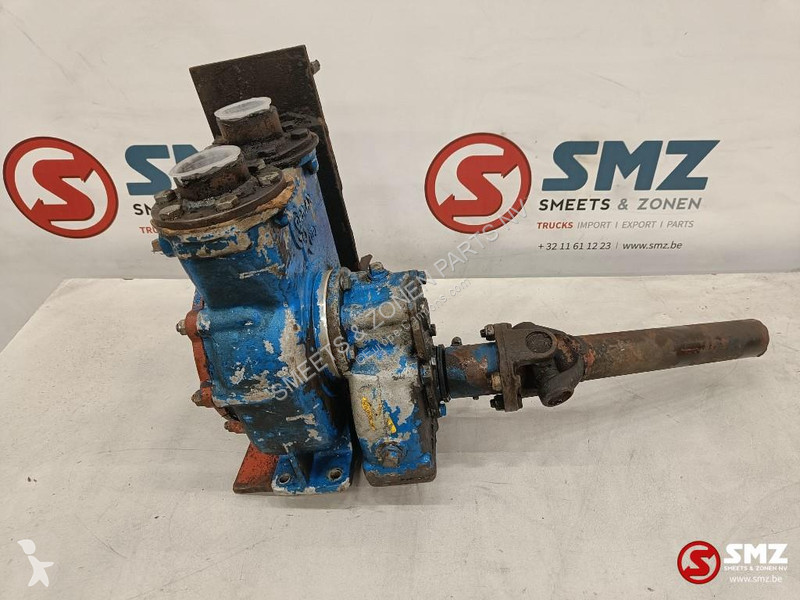

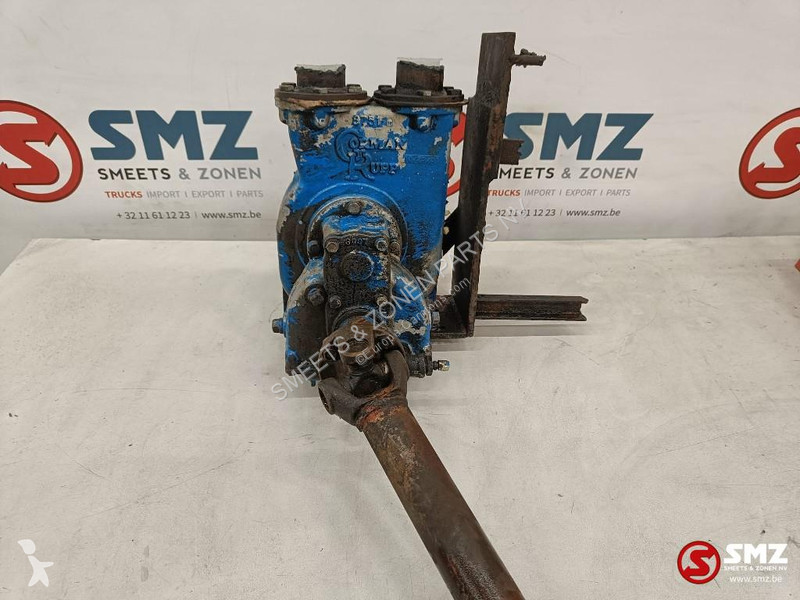

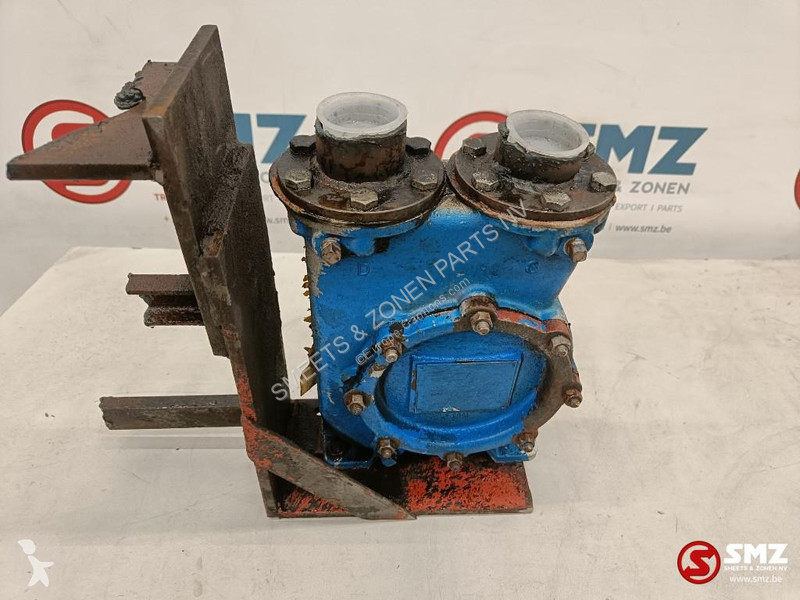

Occ Hydraulische pomp Gorman-Rupp 02F1-GR
UMP SPECIFICATIONS
Size: 2" x 2" (51 mm x 51 mm) NPT - Female.
Casing: Aluminum Alloy 356-T6.
Maximum Operating Pressure 234 psi (1613 kPa).*
Enclosed Type, Six Vane Impeller:
Aluminum Alloy 356-T6 w/Gray Iron 30 Hub Insert.
Pinion Shaft: Alloy Steel 4320.
ReplaceableWear Ring: Copper Alloy C93200.
Removable Cover Plate: Gray Iron 30, 6 lbs. (3 kg).
Seal: Type 21, Mechanical, Self-Lubricated. Carbon Rotating Face.
Ni-Resist Stationary Face. Fluorocarbon Elastomers (DuPont
Viton or Equivalent). Stainless Steel No. 18-8 Cage and Spring.
Maximum Temperature of Liquid Pumped, 160 F (71 C).*
Seal Guard: Brass Tubing ASTM B-135.
Gearbox Housing: Gray Iron 30.
Gearbox Lubrication: SAE 90 Gear Oil.
Gear: Alloy Steel 4620.
Gear Ratio: 5.69:1 Increase.
Bearings: Open Single Row Ball.
Flanges: Gray Iron 30.
Gaskets: Buna-N w/Cork and Vegetable Fiber


OEM : 02F1-GR

Article nr.: S082999214
Used centrifugal pump 02F1-GR

Type: Hydraulic pump
Type number: 02F1-GR

Second-hand trucks: service from A to Z


The stock of second-hand trucks of Smeets & Zonen consists of approximately 1000 of trucks, tractors, and vans from all brands and years of construction. We also have a large range of new and used parts. Can’t find what you are looking for in our offer? Then we will gladly convert your truck, fully customised to your wishes and needs.

!!!!SHIPPING WORLDWIDE!!!! Send a request and we will calculate transport. Se numret WWW.SMZ.BE

02F1-GR
Occ Hydraulische pomp Gorman-Rupp 02F1-GR
UMP SPECIFICATIONS
Size: 2" x 2" (51 mm x 51 mm) NPT - Female.
Casing: Aluminum Alloy 356-T6.
Maximum Operating Pressure 234 psi (1613 kPa).*
Enclosed Type, Six Vane Impeller:
Aluminum Alloy 356-T6 w/Gray Iron 30 Hub Insert.
Pinion Shaft: Alloy Steel 4320.
ReplaceableWear Ring: Copper Alloy C93200.
Removable Cover Plate: Gray Iron 30, 6 lbs. (3 kg).
Seal: Type 21, Mechanical, Self-Lubricated. Carbon Rotating Face.
Ni-Resist Stationary Face. Fluorocarbon Elastomers (DuPont
Viton or Equivalent). Stainless Steel No. 18-8 Cage and Spring.
Maximum Temperature of Liquid Pumped, 160 F (71 C).*
Seal Guard: Brass Tubing ASTM B-135.
Gearbox Housing: Gray Iron 30.
Gearbox Lubrication: SAE 90 Gear Oil.
Gear: Alloy Steel 4620.
Gear Ratio: 5.69:1 Increase.
Bearings: Open Single Row Ball.
Flanges: Gray Iron 30.
Gaskets: Buna-N w/Cork and Vegetable Fiber


OEM : 02F1-GR

Artikel nr.: S082999214
Gebr centrifugal pump 02F1-GR

Typ: Hydraulikpumpe
Typennummer: 02F1-GR

Gebrauchte LKWs: Ein Service von A bis Z


Der Bestand an Gebrauchtfahrzeugen von Smeets & Zonen? Dieser besteht aus ungefähr 1000 LKWs, Sattelschleppern und Lieferwagen aller Baujahre und Marken. Wir verfügen ebenfalls über eine große Auswahl an neuen und gebrauchten Fahrzeugteilen. Finden Sie in unserem Angebot nicht das, was Sie suchen? Wir bauen Ihnen gerne Ihren maßgeschneiderten LKW!

02F1-GR
Occ Hydraulische pomp Gorman-Rupp 02F1-GR
UMP SPECIFICATIONS
Size: 2" x 2" (51 mm x 51 mm) NPT - Female.
Casing: Aluminum Alloy 356-T6.
Maximum Operating Pressure 234 psi (1613 kPa).*
Enclosed Type, Six Vane Impeller:
Aluminum Alloy 356-T6 w/Gray Iron 30 Hub Insert.
Pinion Shaft: Alloy Steel 4320.
ReplaceableWear Ring: Copper Alloy C93200.
Removable Cover Plate: Gray Iron 30, 6 lbs. (3 kg).
Seal: Type 21, Mechanical, Self-Lubricated. Carbon Rotating Face.
Ni-Resist Stationary Face. Fluorocarbon Elastomers (DuPont
Viton or Equivalent). Stainless Steel No. 18-8 Cage and Spring.
Maximum Temperature of Liquid Pumped, 160 F (71 C).*
Seal Guard: Brass Tubing ASTM B-135.
Gearbox Housing: Gray Iron 30.
Gearbox Lubrication: SAE 90 Gear Oil.
Gear: Alloy Steel 4620.
Gear Ratio: 5.69:1 Increase.
Bearings: Open Single Row Ball.
Flanges: Gray Iron 30.
Gaskets: Buna-N w/Cork and Vegetable Fiber


OEM : 02F1-GR

Artikel nr.: S082999214
Occ centrifugaal pomp 02F1-GR

Type: Hydraulische pomp
Typenummer: 02F1-GR
Imitatie-onderdeel: nee
