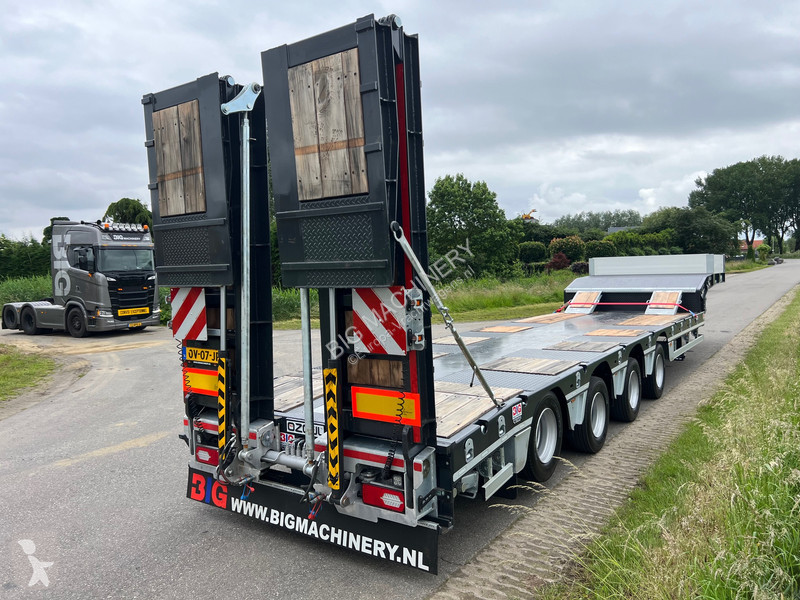

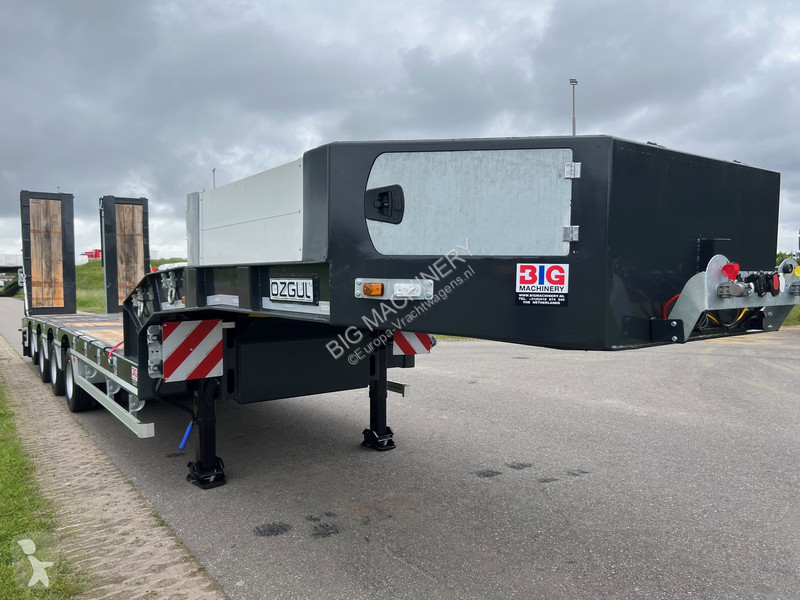

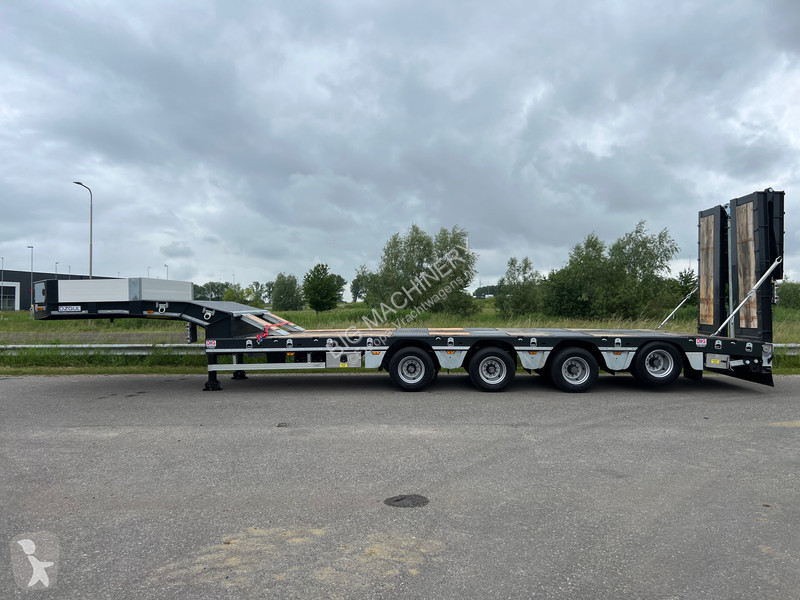

Semitrailer Ozgul LW4 EU FIX
Semitrailer Ozgul LW4 EU FIX

Semitrailer maskinbärare ny Ozgul LW4 EU FIX

  • 5334 NL Velddriel
  • Ozgul
Semitrailer Maskinbärare
Huvudsaklig information
Kundref.: 00032306
Webbplatsref.: 10022168
Karosseri Maskinbärare
Märke Ozgul
Modell LW4 EU FIX
Tillstånd Ny
År 2024
Datum för första registrering
Land NEDERLÄNDERNA
Constructeur Ozgul
Däck
Däckens tillstånd och storlekar-
Utrustning Semitrailer Ozgul
  • ABS
  • EBS
Tonnage
Tjänstevikt13 Ton
Växellåda och transmission
Precisioner växellåda-
Anmärkningar
🇬🇧 Information in English:
Additional options and accessories
  • Lifting axle

Remarks

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting

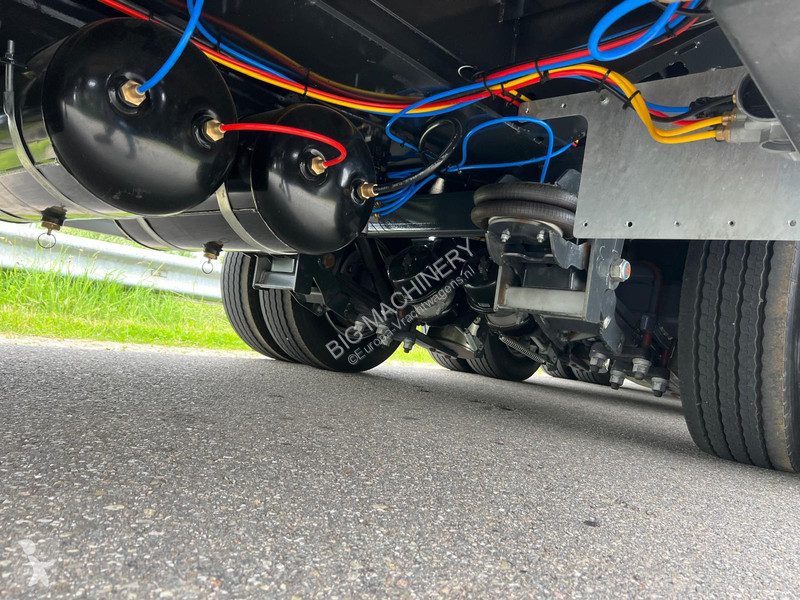

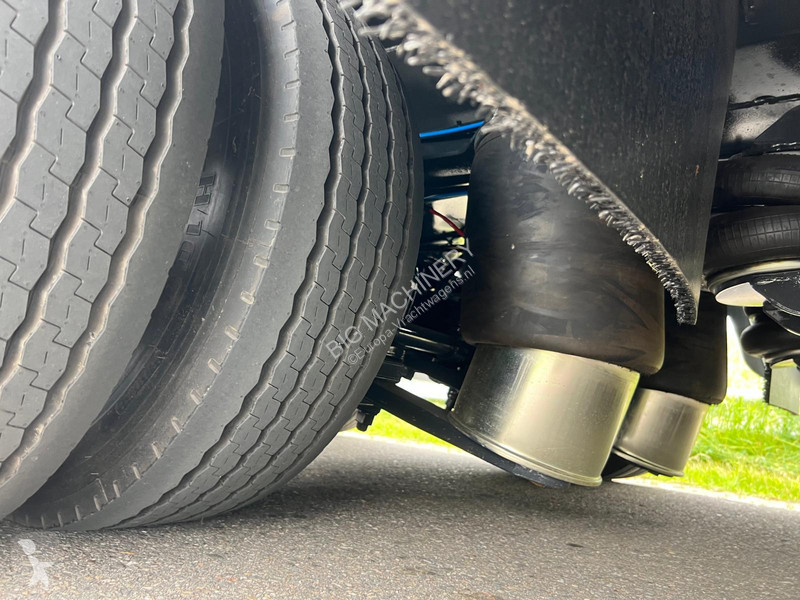

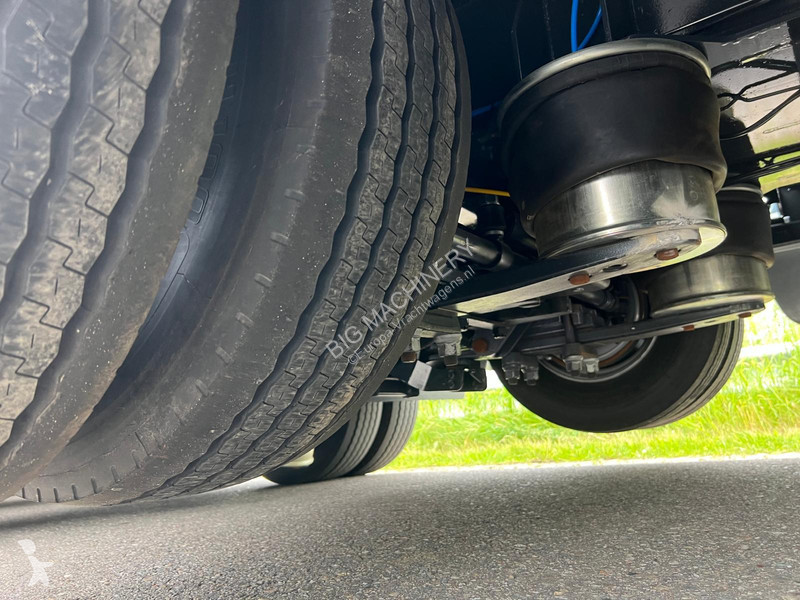

-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”

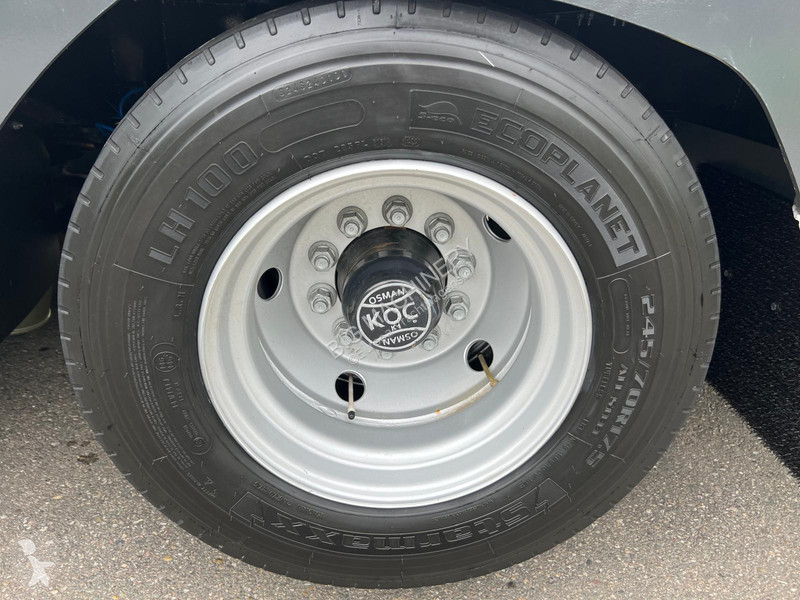

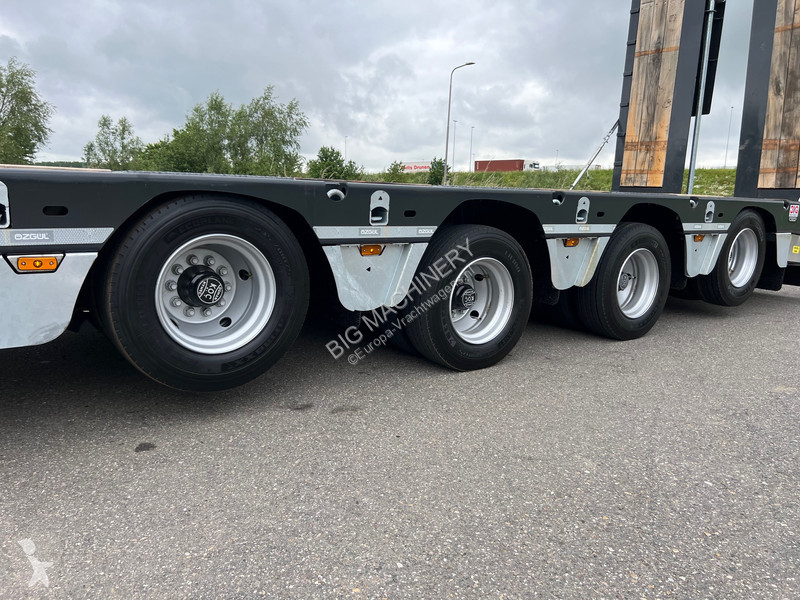

-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed

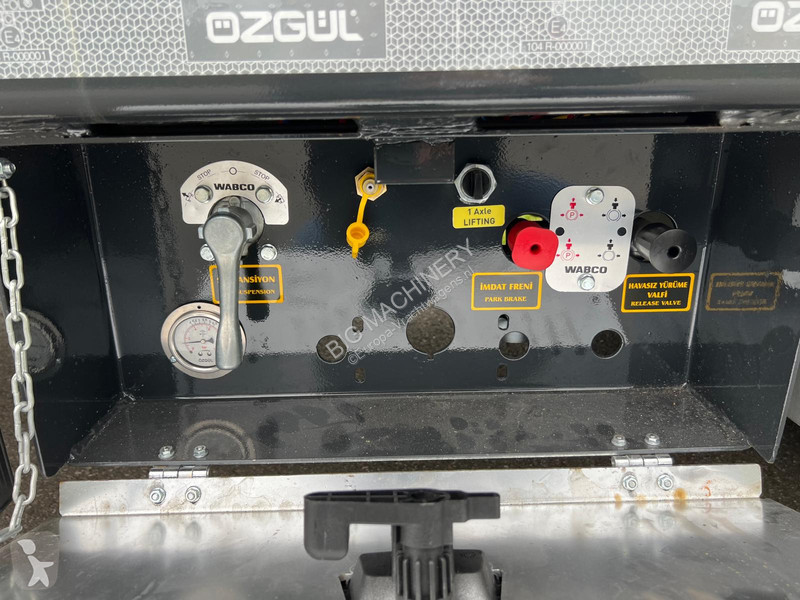

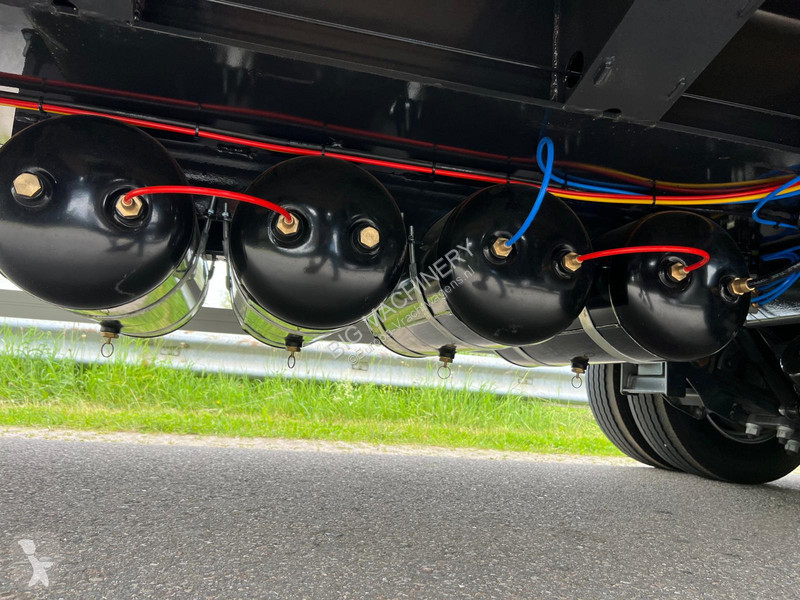

-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System

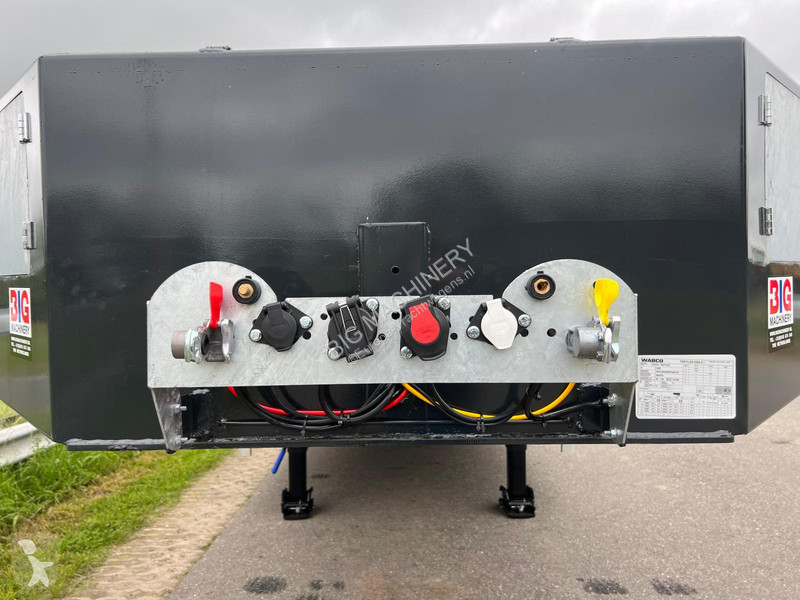

-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights

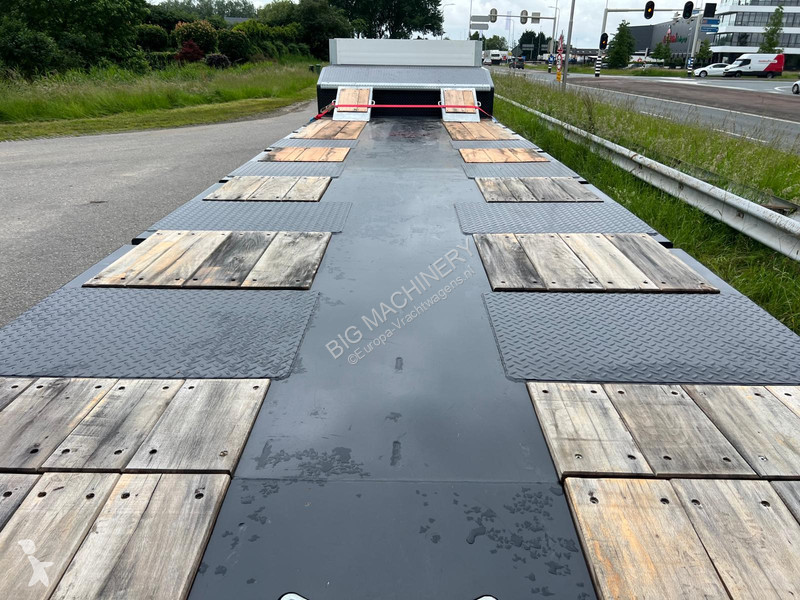

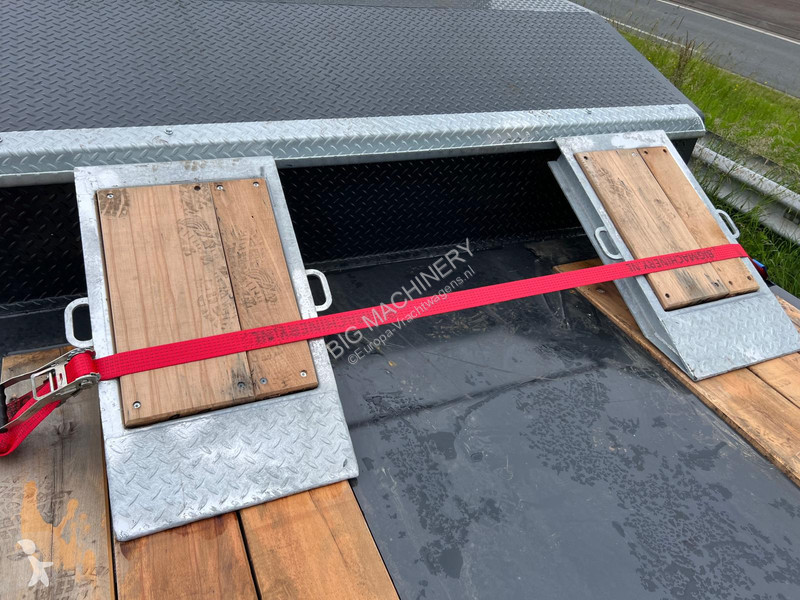

Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel

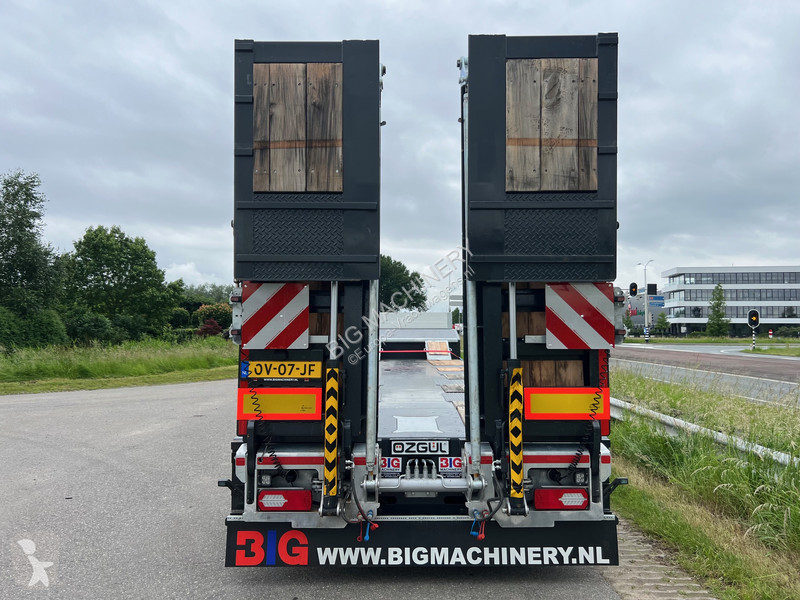

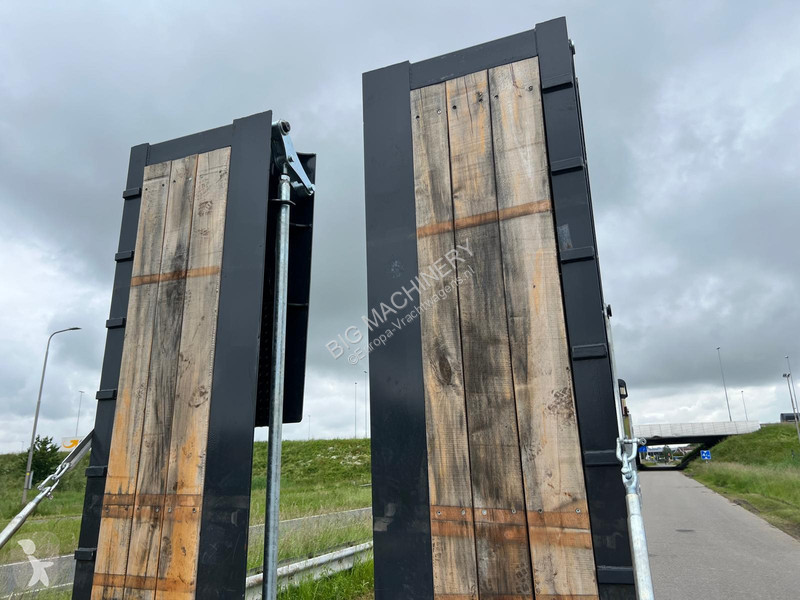

Rear Loading Ramps

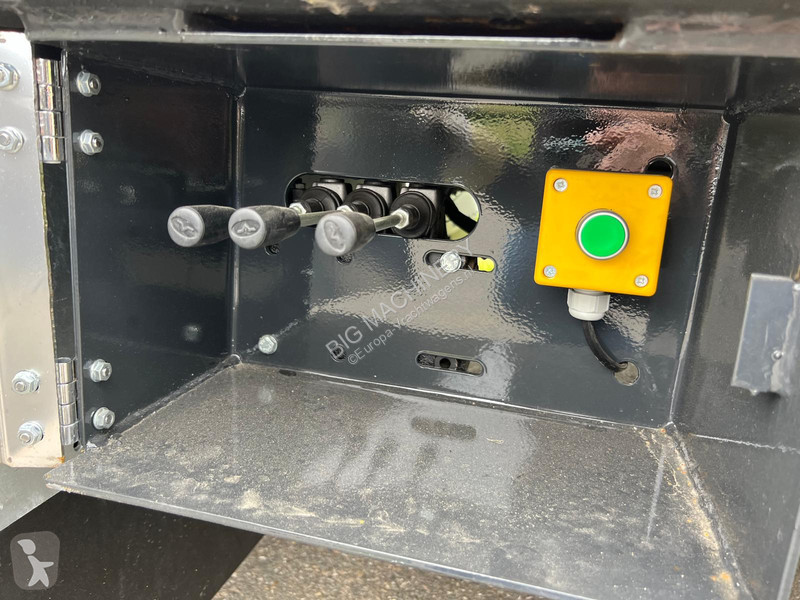

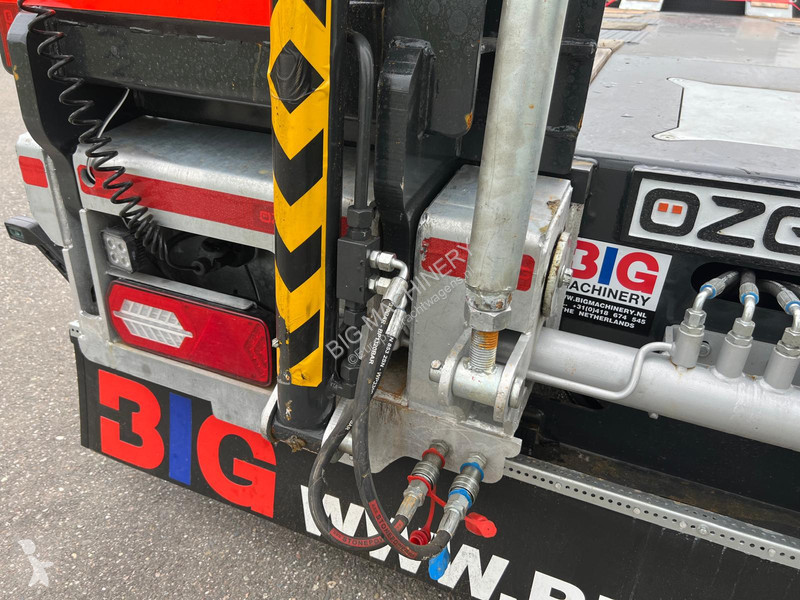

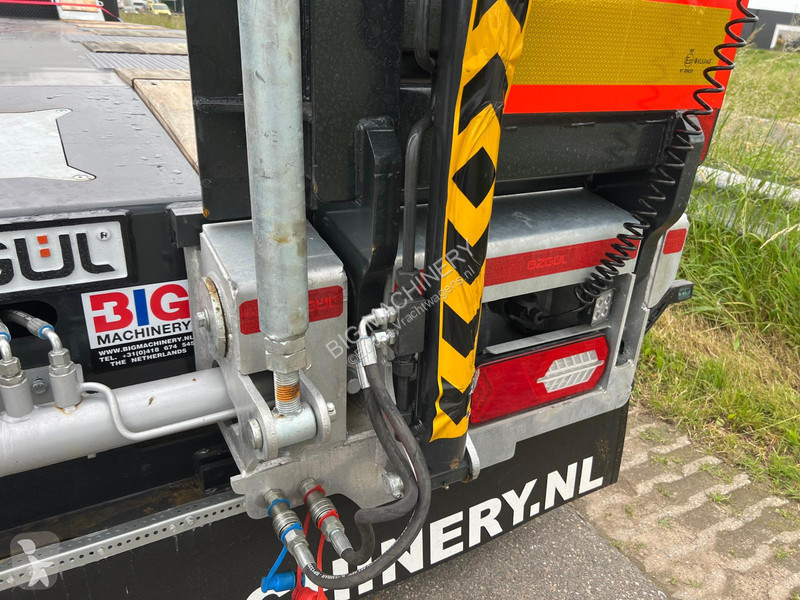

-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES

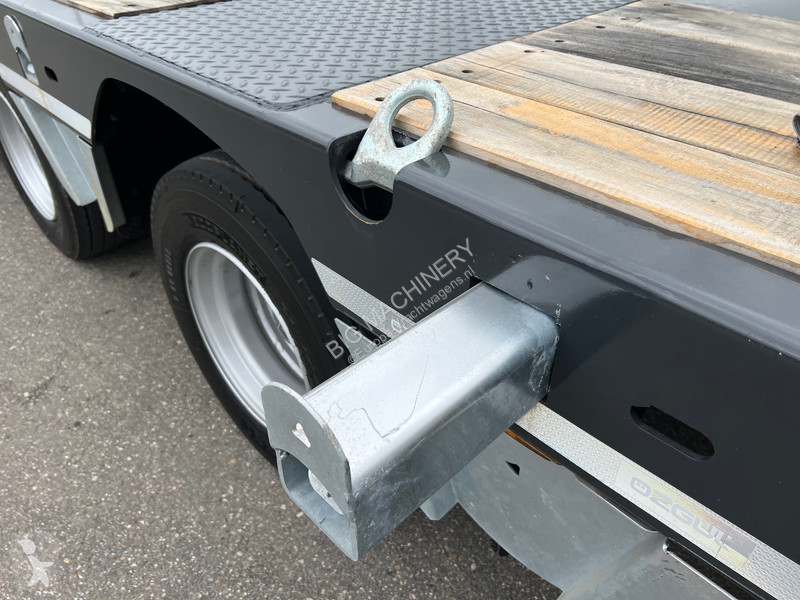

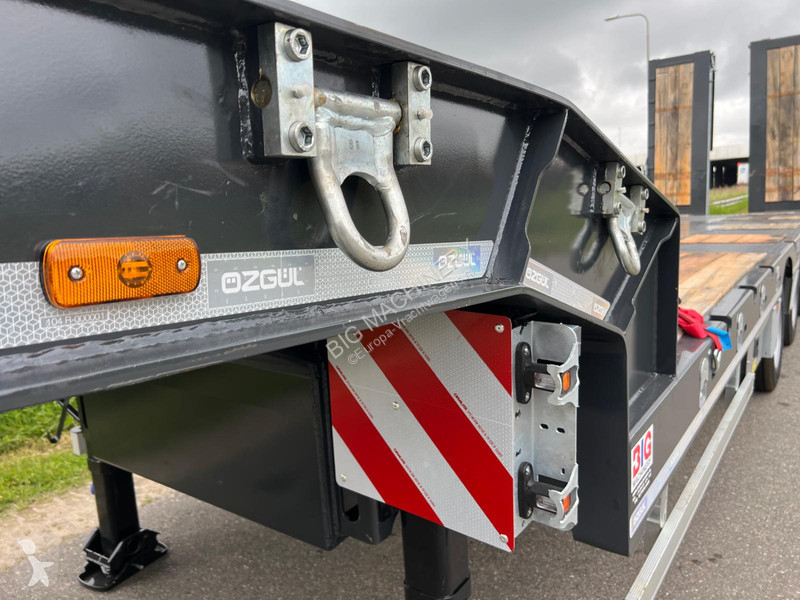

-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank

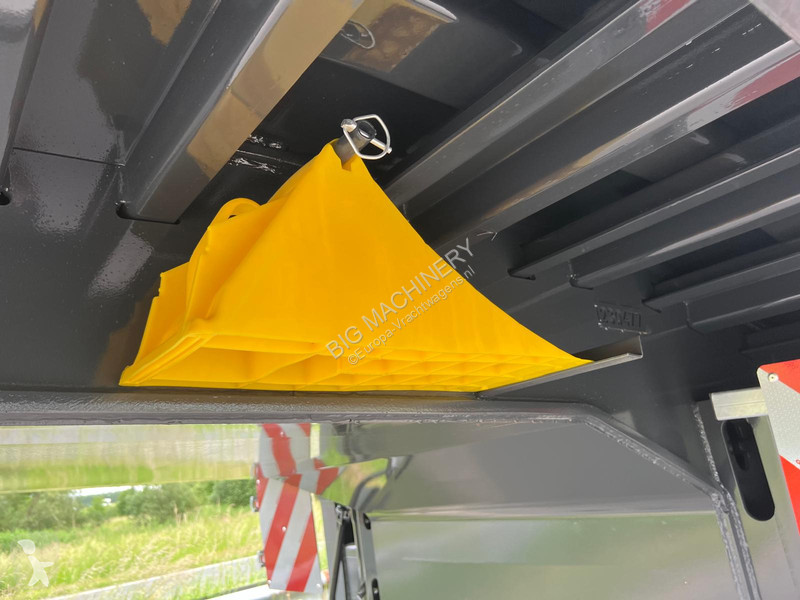

-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.

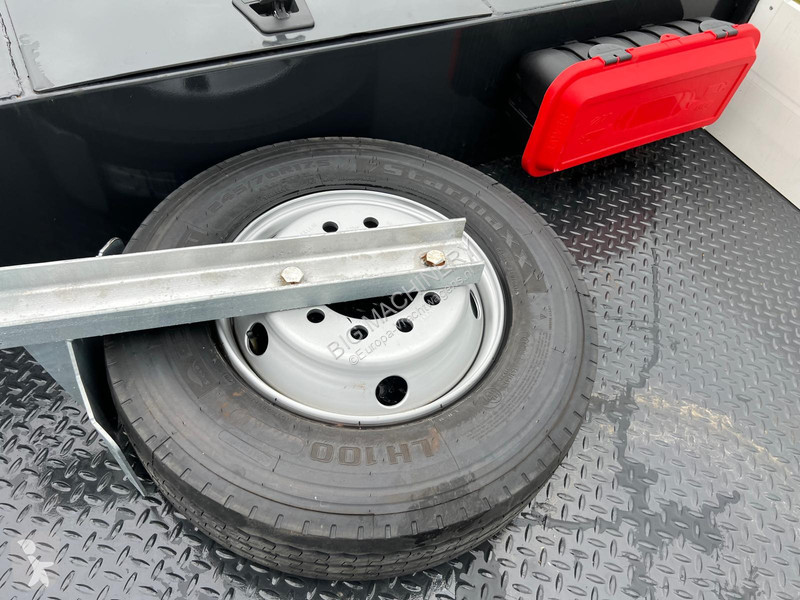

-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.

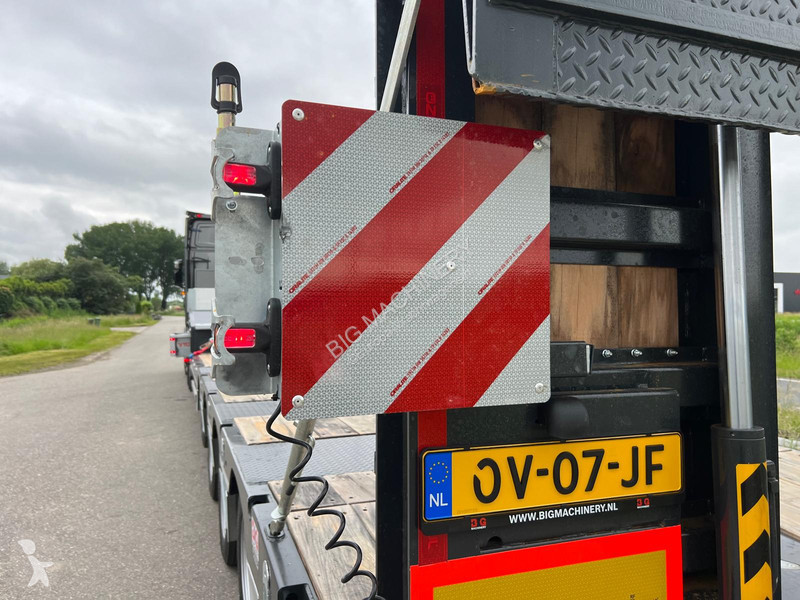

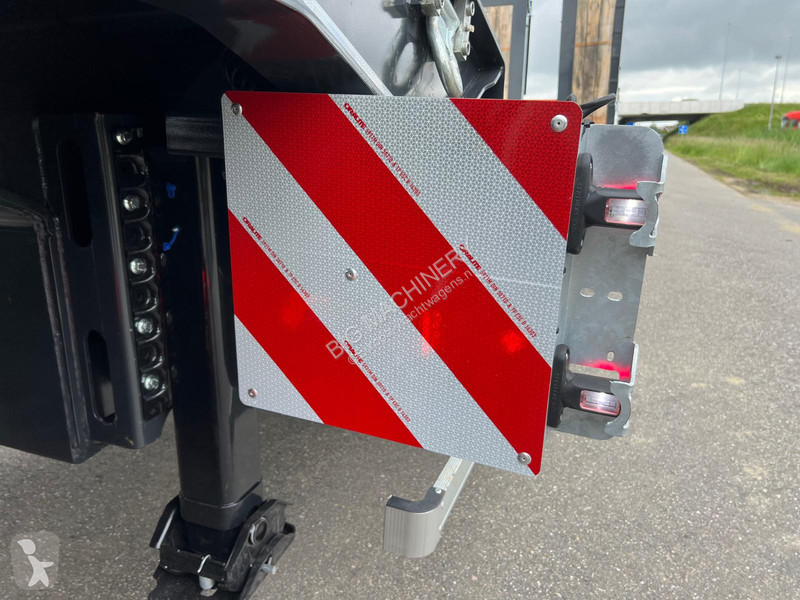

-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)

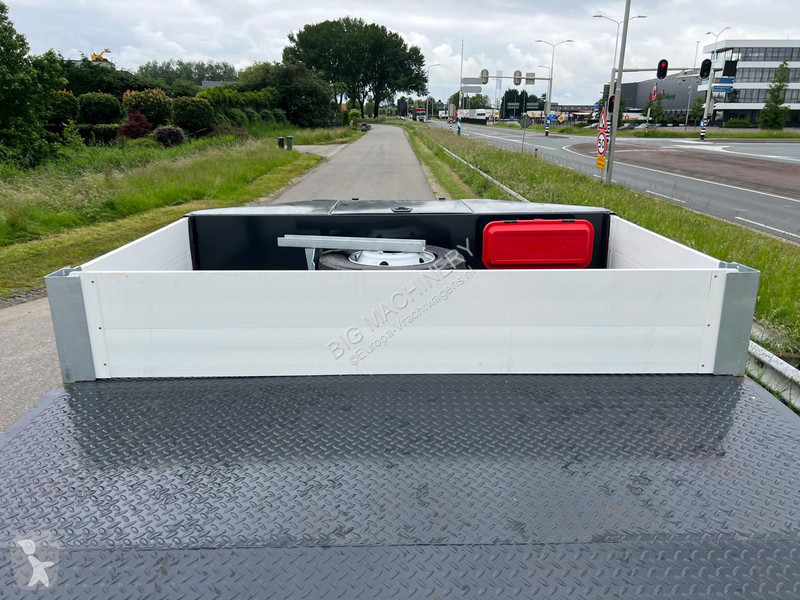

-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


More information

CE mark: yes
COC available: Yes


🇩🇪 Informationen auf Deutsch:
Weitere Optionen und Zubehör
  • Hubachse

Anmerkungen

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Weitere Informationen

CE-Kennzeichnung: ja


🇳🇱 Informatie in het Nederlands:
Aanvullende opties en accessoires
  • Liftas

Bijzonderheden

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Meer informatie

CE markering: ja
COC beschikbaar: Ja


Référence parc : 01tJy000001jZ13IAE,
État : Neuf,
Roue de secours,
Poids : 13kg,
Marque de la semi-remorque : OZGUL,
Type d'intérieur : Autre,
Type de pneus : Simples
Se allt
Anmärkningar
🇬🇧 Information in English:
Additional options and accessories
  • Lifting axle

Remarks

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium

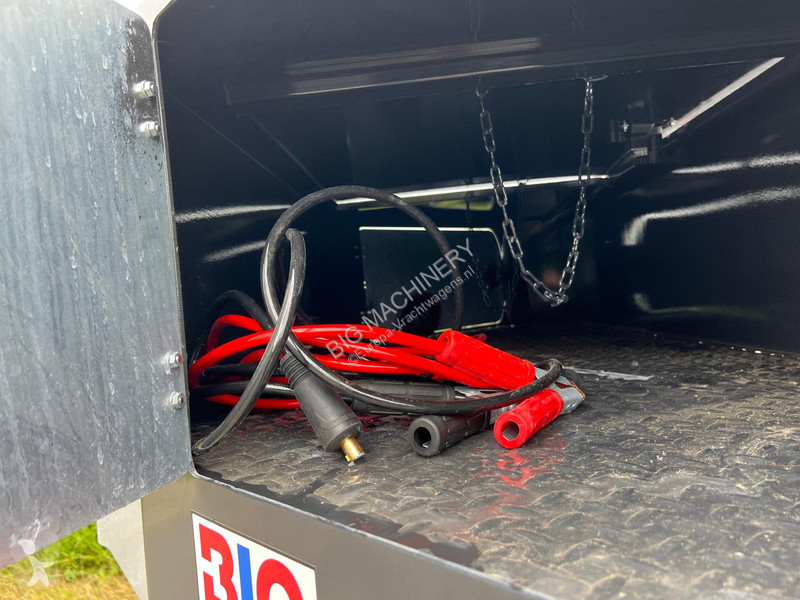

-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


More information

CE mark: yes
COC available: Yes


🇩🇪 Informationen auf Deutsch:
Weitere Optionen und Zubehör
  • Hubachse

Anmerkungen

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand

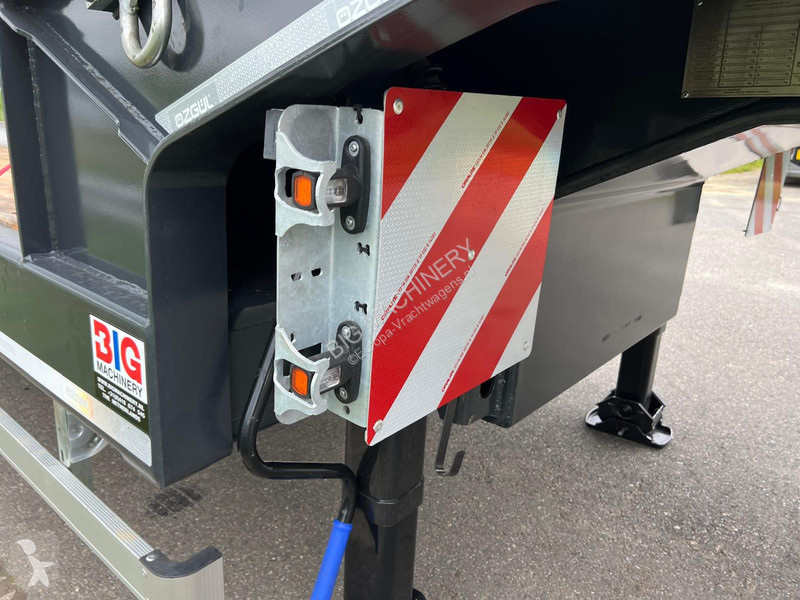

-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Weitere Informationen

CE-Kennzeichnung: ja


🇳🇱 Informatie in het Nederlands:
Aanvullende opties en accessoires
  • Liftas

Bijzonderheden

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Meer informatie

CE markering: ja
COC beschikbaar: Ja


Référence parc : 01tJy000001jZ13IAE,
État : Neuf,
Roue de secours,
Poids : 13kg,
Marque de la semi-remorque : OZGUL,
Type d'intérieur : Autre,
Type de pneus : Simples
Försäljningspris
48 000 EUR Exkl. moms
Semitrailer Maskinbärare
Huvudsaklig information
Kundref.: 00032306
Webbplatsref.: 10022168
Karosseri Maskinbärare
Märke Ozgul
Modell LW4 EU FIX
Tillstånd Ny
År 2024
Datum för första registrering
Land NEDERLÄNDERNA
Constructeur Ozgul
Däck
Däckens tillstånd och storlekar-
Utrustning Semitrailer Ozgul
  • ABS
  • EBS
Tonnage
Tjänstevikt13 Ton
Växellåda och transmission
Precisioner växellåda-
Anmärkningar
🇬🇧 Information in English:
Additional options and accessories
  • Lifting axle

Remarks

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


More information

CE mark: yes
COC available: Yes


🇩🇪 Informationen auf Deutsch:
Weitere Optionen und Zubehör
  • Hubachse

Anmerkungen

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Weitere Informationen

CE-Kennzeichnung: ja


🇳🇱 Informatie in het Nederlands:
Aanvullende opties en accessoires
  • Liftas

Bijzonderheden

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Meer informatie

CE markering: ja
COC beschikbaar: Ja


Référence parc : 01tJy000001jZ13IAE,
État : Neuf,
Roue de secours,
Poids : 13kg,
Marque de la semi-remorque : OZGUL,
Type d'intérieur : Autre,
Type de pneus : Simples
Se allt
Anmärkningar
🇬🇧 Information in English:
Additional options and accessories
  • Lifting axle

Remarks

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


More information

CE mark: yes
COC available: Yes


🇩🇪 Informationen auf Deutsch:
Weitere Optionen und Zubehör
  • Hubachse

Anmerkungen

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Weitere Informationen

CE-Kennzeichnung: ja


🇳🇱 Informatie in het Nederlands:
Aanvullende opties en accessoires
  • Liftas

Bijzonderheden

TECHNICAL SPECIFICATIONS
MASSES & DIMENSIONS
-Gross Vehicle Weight (kg) : 70.000
-Loading Platform Length (mm) : 9.000
-Weight of Axle Group (kg) : 48.000
-Total Lenght (mm) : 13.550
-Kingpin Capacity (kg) :22.000
-Total Width (mm) : 2.550
-Curb Weight (kg) : 13.000
-Loading Platform Height (mm) : 920
-Pay Load (kg) : 57.000
-Height of 5.th Wheel (mm) : 1.310
CONSTRUCTIONS
-Base Chassis
-Heavy duty and extra durability designed BOX type chassis All welded S355 steel chassis
-Outer frame is UPE 240 profile
-Welding (Chassis) : Automatic ARC submerged
-Welding (Superstructure) : Automatic robot welding
-Axle (Type) : Özkoç Trax or Osman Koç Turkish Brand
-Drum brakes 4 x 12 Ton axles
-Axle Lifting : 1st axle automatic 4th axle manuel lifting
-Suspension (Type) : Air Suspension
-Steering Axles : -
-King pin (Type) : 1 position with 1x coupling-pen 2”
-Tires : 16+1 Units, 245 / 70 R 17.5
-Rims : 16+1 Units, 6.75 x 17.5 steel rims
-Landing Gear : Mechanical operated by one side, two speed
-Brake System : Wabco EBS (4S/3M) with RSS according to EC Directive with ADR Adaptation
-Brake Chamber
-2 axles with 4 units emergency brake chambers.
-2 axle with 4 units service brake chambers.
Electric System
-24V, 2x7 + 1x15 pin sockets, according to SAE standard with ADR Adaptation SABA Brand
-2 x Rear Stop Lights. - 4 x Side LED Lights
-2 x White LED Lights - 2 x Front LED Lights
-2 x Registration Plate Lights - 2 x rotating Lights
Floor
-Above tyres and edges of platform are covered chequered sheet and hard wood
-The middle surface is covered by flat sheet steel
Rear Loading Ramps
-Hydraulic operated rear ramps with Electro pump for rear ramps hydraulic function with cable
-push – button for remote control
-Folding type rear ramps length 2500 mm +1500 mm width 900 mm
-Rear ramps are sliding internal and external hydraulic
-Short steel ramps behind of neck.
Paint Application
-Sand Blasting, Chemical cleaning, HYZINC covering, Epoxy covering and 2 coats of acrylic paint
TECHNICAL SPECIFICATIONS ACCESSORIES
-2 x 8 pcs of heavy duty lashing rings mounted on the outer frame mushroom type
-4 x Certificated Expray mud flaps.
-1 x Plastic water tank
-2 x Wheel chocks and holders
-2 x 8 Galvanized sides extensions brackets 250 mm + 250 mm
-2 x Side Protections, Aluminium
-1 x Tool box.
-1 x spare Wheel carrier with 1 tire(on the gooseneck)
-2 x Manual support Legs at the rear.
-2 x Reflective tape and reflector sign at the rear and sides.
-2 x Side extensions reflector
-Steel front panel(height:400mm)
-Aluminum side panels on gooseneck section(height:400mm)
-1 plaque places on rear ramps or bumper


Meer informatie

CE markering: ja
COC beschikbaar: Ja


Référence parc : 01tJy000001jZ13IAE,
État : Neuf,
Roue de secours,
Poids : 13kg,
Marque de la semi-remorque : OZGUL,
Type d'intérieur : Autre,
Type de pneus : Simples
Försäljningspris
48 000 EUR Exkl. moms
BIG MACHINERY

BIG MACHINERY

5334 NL Velddriel

PAYS-BAS

tag-iconSedan 11 år på Via-Mobilis.se

Gelderland - Nederländerna
map-icon
Se på kartan
Se säljarens annonser
Försäljare
Allemand - Anglais
+31.418.67.45.45
Kontakta försäljaren Ändra
  • Telefon
  • E-post
  • Lokalisering
  • Företag
Se mer Se mindre

Via Mobilis åtar sig att respektera de grundläggande värdena i förordningen om skydd av dina personuppgifter.

Den här webbplatsen skyddas av reCAPTCHA. Googles sekretesspolicy och användningsvillkor gäller

  Säkerhetsråd
Rapportera annons
Liknande annonser
20
Semitrailer maskinbärare Kel-Berg
Semitrailer maskinbärare Kel-Berg
Semitrailer maskinbärare Kel-Berg

Semitrailer maskinbärare Kel-Berg PRSGR27NLLA BW Lift + Lenkachse

15 400 EUR Exkl. moms
45t 3 axlar 2020
🇬🇧 Information in English:Additional options and accessories Floor Material Material: steel Security rings More information Tyre size: 265/70R19.5...
BAS WORLD
BAS WORLD
Säljare sedan 14 år
NEDERLÄNDERNA - Veghel
14
Semitrailer maskinbärare Broshuis

Semitrailer maskinbärare Broshuis 3 X EXTENDABLE TOTALE 42 M + EXTENSION TRACK DEFECTIVE

20 950 EUR Exkl. moms
48t 3 axlar 2003
RH TRUCKS
NEDERLÄNDERNA - Zuid-Holland - Groot-Ammers
7
Semitrailer maskinbärare
New

Semitrailer maskinbärare 3 axle semi low loader unused

34 900 EUR Exkl. moms
38t 3 axlar 2024
S-TRUCKS BV
NEDERLÄNDERNA - Zuid-Holland - Schiedam
25
Semitrailer maskinbärare Krone

Semitrailer maskinbärare Krone SD Sliding curtains 13.6 - Semi-low loader - Pop-up roof - BPW axles drum brake

10 950 EUR Exkl. moms
39t 3 axlar 2010
GEMA TRADING
NEDERLÄNDERNA - Noord-Brabant - Oud Gastel
26
Ledat fordon maskinbärare

Ledat fordon maskinbärare D3 + HYDROLIC FRONT/BACK LOADER + 3 AXLE + SPECIAL HEAVY

43 950 EUR Exkl. moms
30t 2018
TRUCKS ROOSENDAAL
NEDERLÄNDERNA - Noord-Brabant - Roosendaal
Visning 1 på 4
Överst på sidan
