Stenkross ny Constmach Tertiary Impact Crusher 60-250 TPH (Sand Making Machine)

You can call us 24/7 for tertiary impact crushers for sale.

CTC series tertiary impact crushers offer high-performance machines equipped with the most advanced technology for your stone crushing needs. Each model is designed to increase stone crushing capacity and achieve superior results even on the most challenging projects. CTC-1275, CTC-1210, CTC-1212 and CTC-1215 models offer solutions to suit your needs with various features from maximum feeding sizes to motor powers.

CTC-1275 model has a maximum feeding size of 100 mm and a production capacity of 60-80 t/h. It is a compact and powerful option with 110 kW engine power and 9,500 kg weight. Our CTC-1210 model can process materials up to 120 mm feed size and offers a production capacity of 80-135 t/h. It provides a robust and effective crushing process with its 160 kW engine power and 12,500 kg weight.

Ideal for larger projects, the CTC-1212 model can easily crush materials up to 150 mm feed size and provides high efficiency with a production capacity of 120-170 t/h. It offers high performance with its 200 kW engine power and 15,500 kg weight. Our largest model, the CTC-1215, can crush stones up to 150 mm feed size and offers industrial-level efficiency with a production capacity of 230-250 t/h. With its 250 kW engine power and 18,500 kg weight, it shows superior performance even in the most challenging projects.

All our models have a rotor speed of 800-900 rpm, providing maximum efficiency and durability. Our stone crushing machines offer a reliable solution in all kinds of crushing operations with their robust structures and advanced technology features. By choosing the model that suits your needs, you can achieve the highest performance in stone crushing operations. Our tertiary impact crushers are industry leaders in terms of durability, efficiency and performance.

CTC-1275 Model Tertiary Impact Crusher Technical Specifications

Maximum Feed Size: 100 mm
Crusher Weight: 9.500 kg
Engine Power: 110 kW
Rotor Diameter: 1.100 x 750 mm
Rotor Speed: 800-900 rpm
Production Capacity: 60 – 80 t/h

CTC-1210 Model Tertiary Impact Crusher Technical Specifications

Maximum Feed Size: 120 mm
Crusher Weight: 12.500 kg
Engine Power: 160 kW
Rotor Diameter: 1.100 x 1.000 mm
Rotor Speed: 800-900 rpm
Production Capacity: 80 – 135 t/h

CTC-1212 Model Tertiary Impact Crusher Technical Specifications

Maximum Feed Size: 150 mm
Crusher Weight: 15.500 kg
Engine Power: 200 kW
Rotor Diameter: 1.100 x 1.200 mm
Rotor Speed: 800-900 rpm
Production Capacity: 120 – 170 t/h

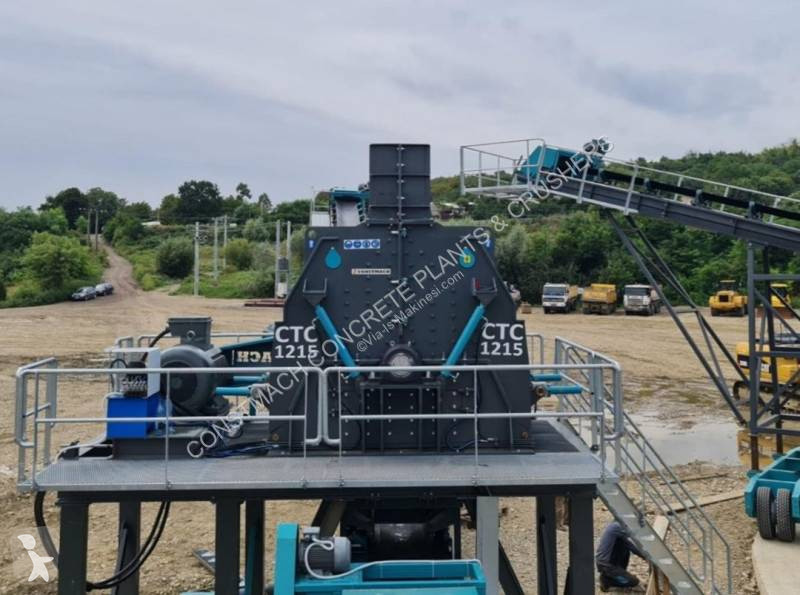

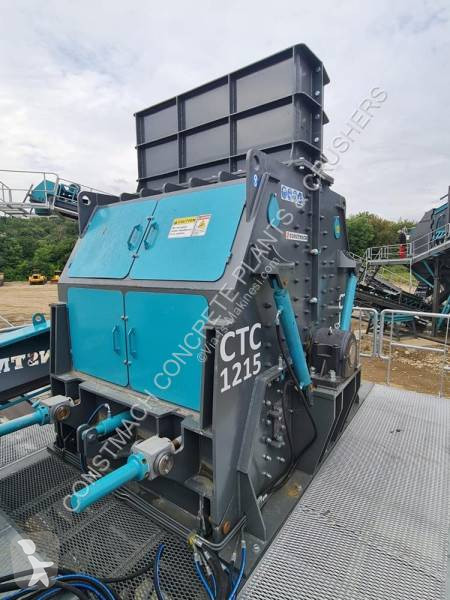

CTC-1215 Model Tertiary Impact Crusher Technical Specifications

Maximum Feed Size: 150 mm
Crusher Weight: 18.500 kg
Engine Power: 250 kW
Rotor Diameter: 1.100 x 1.500 mm
Rotor Speed: 800-900 rpm
Production Capacity: 230 – 250 t/h
